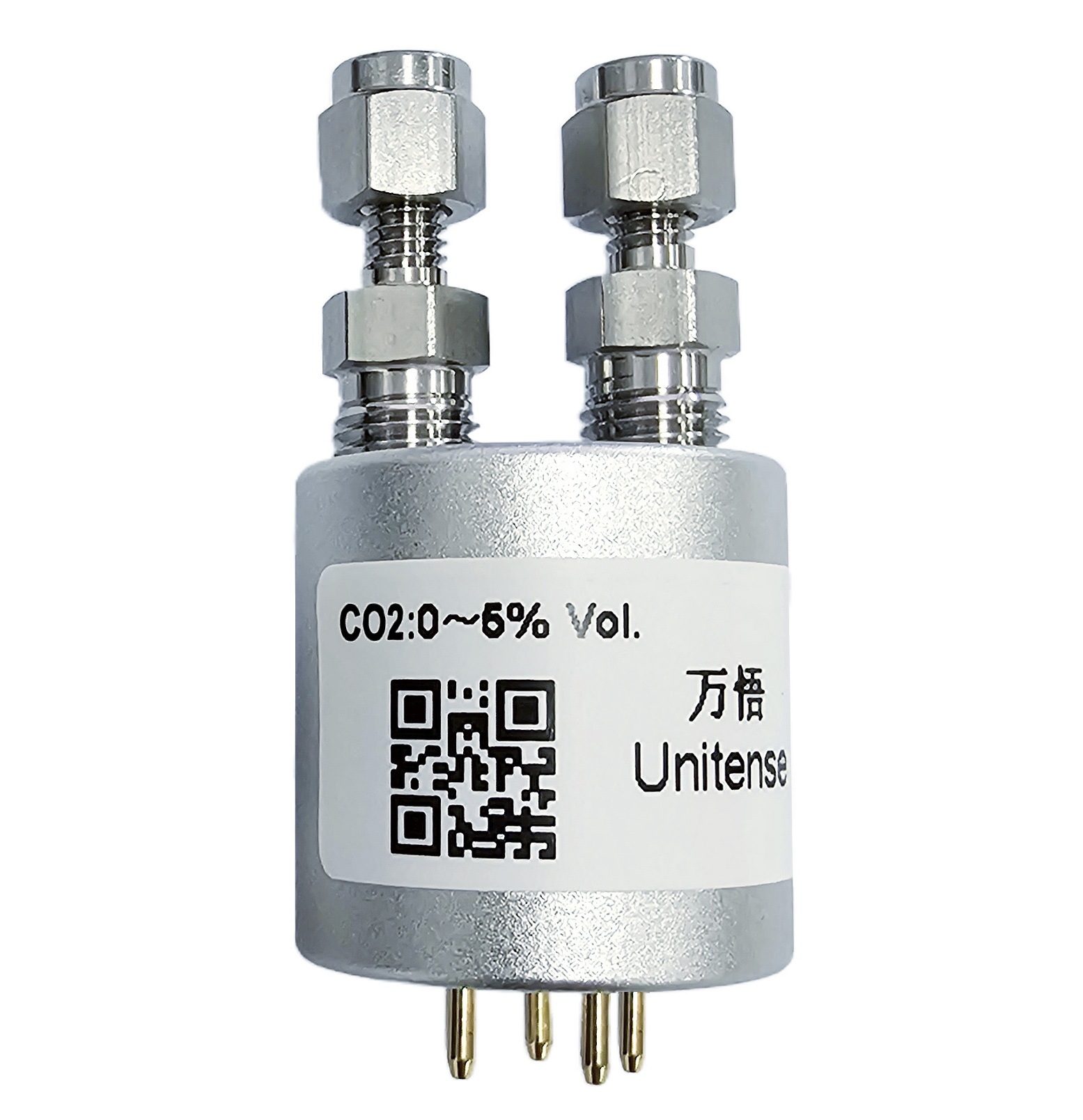

产品型号 Product Number U91030X Series
检测气体 Target Gas CO2
检测范围 Measurement Range Refer to datasheet
检测精度 Accuracy Refer to technical datasheet
响应时间 Response Time 1.5 ~ 60 seconds depending on digital filtering settings
工作条件 Operation Conditions -20～60℃; 0～95%RH (Non-condensing)
存储条件 Storage Conditions -40 ℃～85 ℃
供电电压 Power Supply DC 3.6V～5.5V，Ripple voltage < 50mV
平均工作电流 Average Current < 40mA
峰值电流 Peak Current <300mA
通讯接口 Communication Interface UART TTL, Voltage output (0.4 V - 2 V)
产品寿命 Life Expectancy >10 years
长期稳定性 Long-term Stability ≤2% F.S.
重量 Weight 45 grams
